前言

这里我们来探讨一下 elf 文件的执行流程

当然这也是我很久以前就想了解的东西了

不过苦于缺少各种调试环境, 呵呵所以一直搁置于此

调试环境至关重要

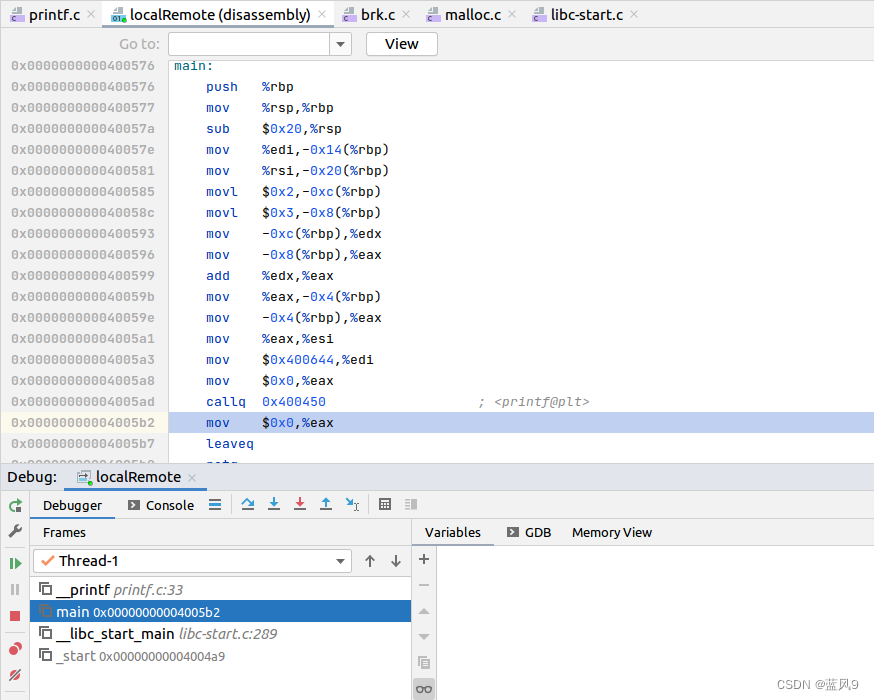

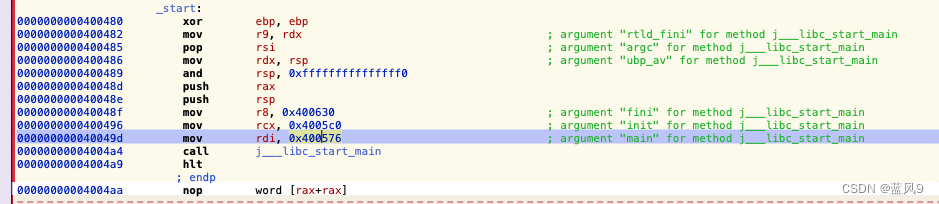

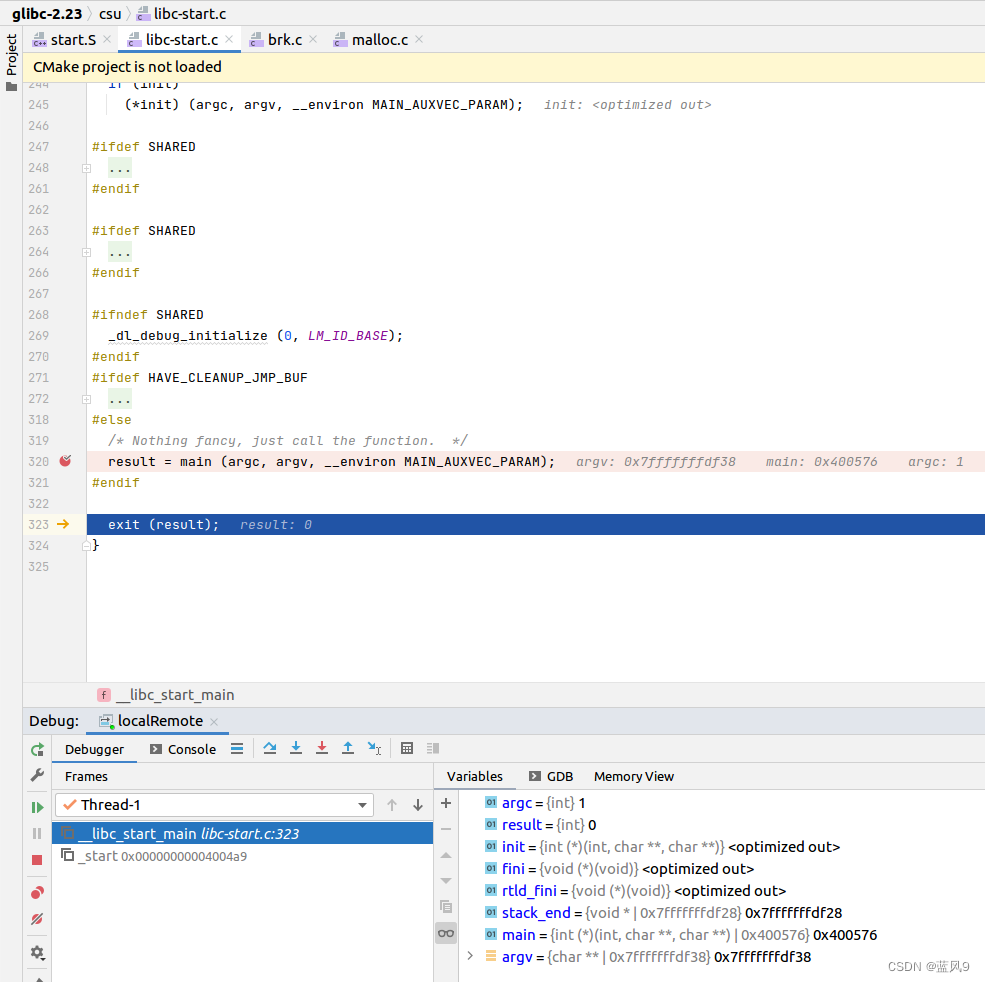

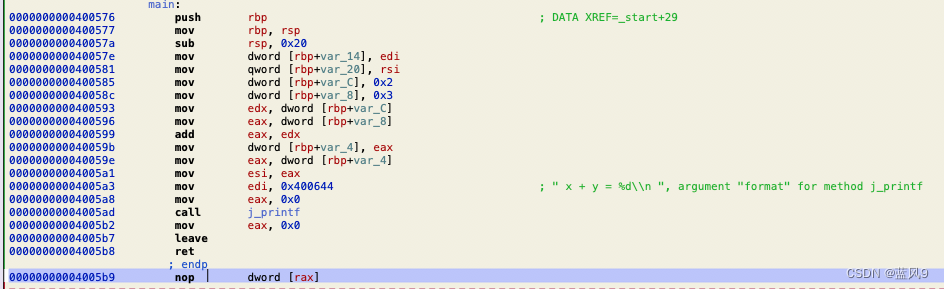

这里主要是走一下 elf 的执行流程, fork, exec, libc_start_main, main

测试用例

root@ubuntu:~/ClionWorkStations/HelloWorld# cat Test01Sum.c
#include "stdio.h"int main(int argc, char** argv) {int x = 2;
int y = 3;
int z = x + y;printf(" x + y = %d\n ", z);}

readelf 查看 elf 的文件信息

root@ubuntu:~/ClionWorkStations/HelloWorld# readelf -a Test01Sum
ELF Header:Magic:   7f 45 4c 46 02 01 01 00 00 00 00 00 00 00 00 00 Class:                             ELF64Data:                              2's complement, little endianVersion:                           1 (current)OS/ABI:                            UNIX - System VABI Version:                       0Type:                              EXEC (Executable file)Machine:                           Advanced Micro Devices X86-64Version:                           0x1Entry point address:               0x400480Start of program headers:          64 (bytes into file)Start of section headers:          8496 (bytes into file)Flags:                             0x0Size of this header:               64 (bytes)Size of program headers:           56 (bytes)Number of program headers:         9Size of section headers:           64 (bytes)Number of section headers:         38Section header string table index: 35Section Headers:[Nr] Name              Type             Address           OffsetSize              EntSize          Flags  Link  Info  Align[ 0]                   NULL             0000000000000000  000000000000000000000000  0000000000000000           0     0     0[ 1] .interp           PROGBITS         0000000000400238  000002380000000000000040  0000000000000000   A       0     0     1[ 2] .note.ABI-tag     NOTE             0000000000400278  000002780000000000000020  0000000000000000   A       0     0     4[ 3] .note.gnu.build-i NOTE             0000000000400298  000002980000000000000024  0000000000000000   A       0     0     4[ 4] .gnu.hash         GNU_HASH         00000000004002c0  000002c0000000000000001c  0000000000000000   A       5     0     8[ 5] .dynsym           DYNSYM           00000000004002e0  000002e00000000000000060  0000000000000018   A       6     1     8[ 6] .dynstr           STRTAB           0000000000400340  00000340000000000000006a  0000000000000000   A       0     0     1[ 7] .gnu.version      VERSYM           00000000004003aa  000003aa0000000000000008  0000000000000002   A       5     0     2[ 8] .gnu.version_r    VERNEED          00000000004003b8  000003b80000000000000020  0000000000000000   A       6     1     8[ 9] .rela.dyn         RELA             00000000004003d8  000003d80000000000000018  0000000000000018   A       5     0     8[10] .rela.plt         RELA             00000000004003f0  000003f00000000000000030  0000000000000018  AI       5    24     8[11] .init             PROGBITS         0000000000400420  00000420000000000000001a  0000000000000000  AX       0     0     4[12] .plt              PROGBITS         0000000000400440  000004400000000000000030  0000000000000010  AX       0     0     16[13] .plt.got          PROGBITS         0000000000400470  000004700000000000000008  0000000000000000  AX       0     0     8[14] .text             PROGBITS         0000000000400480  0000048000000000000001b2  0000000000000000  AX       0     0     16[15] .fini             PROGBITS         0000000000400634  000006340000000000000009  0000000000000000  AX       0     0     4[16] .rodata           PROGBITS         0000000000400640  000006400000000000000012  0000000000000000   A       0     0     4[17] .eh_frame_hdr     PROGBITS         0000000000400654  000006540000000000000034  0000000000000000   A       0     0     4[18] .eh_frame         PROGBITS         0000000000400688  0000068800000000000000f4  0000000000000000   A       0     0     8[19] .init_array       INIT_ARRAY       0000000000600e00  00000e000000000000000008  0000000000000000  WA       0     0     8[20] .fini_array       FINI_ARRAY       0000000000600e08  00000e080000000000000008  0000000000000000  WA       0     0     8[21] .jcr              PROGBITS         0000000000600e10  00000e100000000000000008  0000000000000000  WA       0     0     8[22] .dynamic          DYNAMIC          0000000000600e18  00000e1800000000000001e0  0000000000000010  WA       6     0     8[23] .got              PROGBITS         0000000000600ff8  00000ff80000000000000008  0000000000000008  WA       0     0     8[24] .got.plt          PROGBITS         0000000000601000  000010000000000000000028  0000000000000008  WA       0     0     8[25] .data             PROGBITS         0000000000601028  000010280000000000000010  0000000000000000  WA       0     0     8[26] .bss              NOBITS           0000000000601038  000010380000000000000008  0000000000000000  WA       0     0     1[27] .comment          PROGBITS         0000000000000000  000010380000000000000035  0000000000000001  MS       0     0     1[28] .debug_aranges    PROGBITS         0000000000000000  0000106d0000000000000030  0000000000000000           0     0     1[29] .debug_info       PROGBITS         0000000000000000  0000109d000000000000016a  0000000000000000           0     0     1[30] .debug_abbrev     PROGBITS         0000000000000000  00001207000000000000010d  0000000000000000           0     0     1[31] .debug_line       PROGBITS         0000000000000000  000013140000000000000097  0000000000000000           0     0     1[32] .debug_str        PROGBITS         0000000000000000  000013ab000000000000016d  0000000000000001  MS       0     0     1[33] .debug_loc        PROGBITS         0000000000000000  00001518000000000000011b  0000000000000000           0     0     1[34] .debug_ranges     PROGBITS         0000000000000000  000016330000000000000060  0000000000000000           0     0     1[35] .shstrtab         STRTAB           0000000000000000  00001fc50000000000000165  0000000000000000           0     0     1[36] .symtab           SYMTAB           0000000000000000  000016980000000000000708  0000000000000018          37    55     8[37] .strtab           STRTAB           0000000000000000  00001da00000000000000225  0000000000000000           0     0     1
Key to Flags:W (write), A (alloc), X (execute), M (merge), S (strings), l (large)I (info), L (link order), G (group), T (TLS), E (exclude), x (unknown)O (extra OS processing required) o (OS specific), p (processor specific)There are no section groups in this file.Program Headers:Type           Offset             VirtAddr           PhysAddrFileSiz            MemSiz              Flags  AlignPHDR           0x0000000000000040 0x0000000000400040 0x00000000004000400x00000000000001f8 0x00000000000001f8  R E    8INTERP         0x0000000000000238 0x0000000000400238 0x00000000004002380x0000000000000040 0x0000000000000040  R      1[Requesting program interpreter: /root/Desktop/linux/glibc-2.23/install/lib/ld-linux-x86-64.so.2]LOAD           0x0000000000000000 0x0000000000400000 0x00000000004000000x000000000000077c 0x000000000000077c  R E    200000LOAD           0x0000000000000e00 0x0000000000600e00 0x0000000000600e000x0000000000000238 0x0000000000000240  RW     200000DYNAMIC        0x0000000000000e18 0x0000000000600e18 0x0000000000600e180x00000000000001e0 0x00000000000001e0  RW     8NOTE           0x0000000000000278 0x0000000000400278 0x00000000004002780x0000000000000044 0x0000000000000044  R      4GNU_EH_FRAME   0x0000000000000654 0x0000000000400654 0x00000000004006540x0000000000000034 0x0000000000000034  R      4GNU_STACK      0x0000000000000000 0x0000000000000000 0x00000000000000000x0000000000000000 0x0000000000000000  RW     10GNU_RELRO      0x0000000000000e00 0x0000000000600e00 0x0000000000600e000x0000000000000200 0x0000000000000200  R      1Section to Segment mapping:Segment Sections...00     01     .interp 02     .interp .note.ABI-tag .note.gnu.build-id .gnu.hash .dynsym .dynstr .gnu.version .gnu.version_r .rela.dyn .rela.plt .init .plt .plt.got .text .fini .rodata .eh_frame_hdr .eh_frame 03     .init_array .fini_array .jcr .dynamic .got .got.plt .data .bss 04     .dynamic 05     .note.ABI-tag .note.gnu.build-id 06     .eh_frame_hdr 07     08     .init_array .fini_array .jcr .dynamic .got Dynamic section at offset 0xe18 contains 25 entries:Tag        Type                         Name/Value0x0000000000000001 (NEEDED)             Shared library: [libc.so.6]0x000000000000000f (RPATH)              Library rpath: [/root/Desktop/linux/glibc-2.23/install/lib]0x000000000000000c (INIT)               0x4004200x000000000000000d (FINI)               0x4006340x0000000000000019 (INIT_ARRAY)         0x600e000x000000000000001b (INIT_ARRAYSZ)       8 (bytes)0x000000000000001a (FINI_ARRAY)         0x600e080x000000000000001c (FINI_ARRAYSZ)       8 (bytes)0x000000006ffffef5 (GNU_HASH)           0x4002c00x0000000000000005 (STRTAB)             0x4003400x0000000000000006 (SYMTAB)             0x4002e00x000000000000000a (STRSZ)              106 (bytes)0x000000000000000b (SYMENT)             24 (bytes)0x0000000000000015 (DEBUG)              0x00x0000000000000003 (PLTGOT)             0x6010000x0000000000000002 (PLTRELSZ)           48 (bytes)0x0000000000000014 (PLTREL)             RELA0x0000000000000017 (JMPREL)             0x4003f00x0000000000000007 (RELA)               0x4003d80x0000000000000008 (RELASZ)             24 (bytes)0x0000000000000009 (RELAENT)            24 (bytes)0x000000006ffffffe (VERNEED)            0x4003b80x000000006fffffff (VERNEEDNUM)         10x000000006ffffff0 (VERSYM)             0x4003aa0x0000000000000000 (NULL)               0x0Relocation section '.rela.dyn' at offset 0x3d8 contains 1 entries:Offset          Info           Type           Sym. Value    Sym. Name + Addend
000000600ff8  000300000006 R_X86_64_GLOB_DAT 0000000000000000 __gmon_start__ + 0Relocation section '.rela.plt' at offset 0x3f0 contains 2 entries:Offset          Info           Type           Sym. Value    Sym. Name + Addend
000000601018  000100000007 R_X86_64_JUMP_SLO 0000000000000000 printf@GLIBC_2.2.5 + 0
000000601020  000200000007 R_X86_64_JUMP_SLO 0000000000000000 __libc_start_main@GLIBC_2.2.5 + 0The decoding of unwind sections for machine type Advanced Micro Devices X86-64 is not currently supported.Symbol table '.dynsym' contains 4 entries:Num:    Value          Size Type    Bind   Vis      Ndx Name0: 0000000000000000     0 NOTYPE  LOCAL  DEFAULT  UND 1: 0000000000000000     0 FUNC    GLOBAL DEFAULT  UND printf@GLIBC_2.2.5 (2)2: 0000000000000000     0 FUNC    GLOBAL DEFAULT  UND __libc_start_main@GLIBC_2.2.5 (2)3: 0000000000000000     0 NOTYPE  WEAK   DEFAULT  UND __gmon_start__Symbol table '.symtab' contains 75 entries:Num:    Value          Size Type    Bind   Vis      Ndx Name0: 0000000000000000     0 NOTYPE  LOCAL  DEFAULT  UND 1: 0000000000400238     0 SECTION LOCAL  DEFAULT    1 2: 0000000000400278     0 SECTION LOCAL  DEFAULT    2 3: 0000000000400298     0 SECTION LOCAL  DEFAULT    3 4: 00000000004002c0     0 SECTION LOCAL  DEFAULT    4 5: 00000000004002e0     0 SECTION LOCAL  DEFAULT    5 6: 0000000000400340     0 SECTION LOCAL  DEFAULT    6 7: 00000000004003aa     0 SECTION LOCAL  DEFAULT    7 8: 00000000004003b8     0 SECTION LOCAL  DEFAULT    8 9: 00000000004003d8     0 SECTION LOCAL  DEFAULT    9 10: 00000000004003f0     0 SECTION LOCAL  DEFAULT   10 11: 0000000000400420     0 SECTION LOCAL  DEFAULT   11 12: 0000000000400440     0 SECTION LOCAL  DEFAULT   12 13: 0000000000400470     0 SECTION LOCAL  DEFAULT   13 14: 0000000000400480     0 SECTION LOCAL  DEFAULT   14 15: 0000000000400634     0 SECTION LOCAL  DEFAULT   15 16: 0000000000400640     0 SECTION LOCAL  DEFAULT   16 17: 0000000000400654     0 SECTION LOCAL  DEFAULT   17 18: 0000000000400688     0 SECTION LOCAL  DEFAULT   18 19: 0000000000600e00     0 SECTION LOCAL  DEFAULT   19 20: 0000000000600e08     0 SECTION LOCAL  DEFAULT   20 21: 0000000000600e10     0 SECTION LOCAL  DEFAULT   21 22: 0000000000600e18     0 SECTION LOCAL  DEFAULT   22 23: 0000000000600ff8     0 SECTION LOCAL  DEFAULT   23 24: 0000000000601000     0 SECTION LOCAL  DEFAULT   24 25: 0000000000601028     0 SECTION LOCAL  DEFAULT   25 26: 0000000000601038     0 SECTION LOCAL  DEFAULT   26 27: 0000000000000000     0 SECTION LOCAL  DEFAULT   27 28: 0000000000000000     0 SECTION LOCAL  DEFAULT   28 29: 0000000000000000     0 SECTION LOCAL  DEFAULT   29 30: 0000000000000000     0 SECTION LOCAL  DEFAULT   30 31: 0000000000000000     0 SECTION LOCAL  DEFAULT   31 32: 0000000000000000     0 SECTION LOCAL  DEFAULT   32 33: 0000000000000000     0 SECTION LOCAL  DEFAULT   33 34: 0000000000000000     0 SECTION LOCAL  DEFAULT   34 35: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS crtstuff.c36: 0000000000600e10     0 OBJECT  LOCAL  DEFAULT   21 __JCR_LIST__37: 00000000004004b0     0 FUNC    LOCAL  DEFAULT   14 deregister_tm_clones38: 00000000004004f0     0 FUNC    LOCAL  DEFAULT   14 register_tm_clones39: 0000000000400530     0 FUNC    LOCAL  DEFAULT   14 __do_global_dtors_aux40: 0000000000601038     1 OBJECT  LOCAL  DEFAULT   26 completed.759441: 0000000000600e08     0 OBJECT  LOCAL  DEFAULT   20 __do_global_dtors_aux_fin42: 0000000000400550     0 FUNC    LOCAL  DEFAULT   14 frame_dummy43: 0000000000600e00     0 OBJECT  LOCAL  DEFAULT   19 __frame_dummy_init_array_44: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS elf-init.c45: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS Test01Sum.c46: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS crtstuff.c47: 0000000000400778     0 OBJECT  LOCAL  DEFAULT   18 __FRAME_END__48: 0000000000600e10     0 OBJECT  LOCAL  DEFAULT   21 __JCR_END__49: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS 50: 0000000000600e08     0 NOTYPE  LOCAL  DEFAULT   19 __init_array_end51: 0000000000600e18     0 OBJECT  LOCAL  DEFAULT   22 _DYNAMIC52: 0000000000600e00     0 NOTYPE  LOCAL  DEFAULT   19 __init_array_start53: 0000000000400654     0 NOTYPE  LOCAL  DEFAULT   17 __GNU_EH_FRAME_HDR54: 0000000000601000     0 OBJECT  LOCAL  DEFAULT   24 _GLOBAL_OFFSET_TABLE_55: 0000000000400630     2 FUNC    GLOBAL DEFAULT   14 __libc_csu_fini56: 0000000000000000     0 NOTYPE  WEAK   DEFAULT  UND _ITM_deregisterTMCloneTab57: 0000000000601028     0 NOTYPE  WEAK   DEFAULT   25 data_start58: 0000000000601038     0 NOTYPE  GLOBAL DEFAULT   25 _edata59: 0000000000400634     0 FUNC    GLOBAL DEFAULT   15 _fini60: 0000000000000000     0 FUNC    GLOBAL DEFAULT  UND printf@@GLIBC_2.2.561: 0000000000000000     0 FUNC    GLOBAL DEFAULT  UND __libc_start_main@@GLIBC_62: 0000000000601028     0 NOTYPE  GLOBAL DEFAULT   25 __data_start63: 0000000000000000     0 NOTYPE  WEAK   DEFAULT  UND __gmon_start__64: 0000000000601030     0 OBJECT  GLOBAL HIDDEN    25 __dso_handle65: 0000000000400640     4 OBJECT  GLOBAL DEFAULT   16 _IO_stdin_used66: 00000000004005c0   101 FUNC    GLOBAL DEFAULT   14 __libc_csu_init67: 0000000000601040     0 NOTYPE  GLOBAL DEFAULT   26 _end68: 0000000000400480    42 FUNC    GLOBAL DEFAULT   14 _start69: 0000000000601038     0 NOTYPE  GLOBAL DEFAULT   26 __bss_start70: 0000000000400576    67 FUNC    GLOBAL DEFAULT   14 main71: 0000000000000000     0 NOTYPE  WEAK   DEFAULT  UND _Jv_RegisterClasses72: 0000000000601038     0 OBJECT  GLOBAL HIDDEN    25 __TMC_END__73: 0000000000000000     0 NOTYPE  WEAK   DEFAULT  UND _ITM_registerTMCloneTable74: 0000000000400420     0 FUNC    GLOBAL DEFAULT   11 _initVersion symbols section '.gnu.version' contains 4 entries:Addr: 00000000004003aa  Offset: 0x0003aa  Link: 5 (.dynsym)000:   0 (*local*)       2 (GLIBC_2.2.5)   2 (GLIBC_2.2.5)   0 (*local*)    Version needs section '.gnu.version_r' contains 1 entries:Addr: 0x00000000004003b8  Offset: 0x0003b8  Link: 6 (.dynstr)000000: Version: 1  File: libc.so.6  Cnt: 10x0010:   Name: GLIBC_2.2.5  Flags: none  Version: 2Displaying notes found at file offset 0x00000278 with length 0x00000020:Owner                 Data size	DescriptionGNU                  0x00000010	NT_GNU_ABI_TAG (ABI version tag)OS: Linux, ABI: 2.6.32Displaying notes found at file offset 0x00000298 with length 0x00000024:Owner                 Data size	DescriptionGNU                  0x00000014	NT_GNU_BUILD_ID (unique build ID bitstring)Build ID: 40a7a5576d0c3e9280e8fd00051f817befc922c6

linux 层面的 elf 的执行

在这一个层面主要是包含两个部分, fork + exec

1. fork 当前进程

2. 然后更新子进程的执行文件为待执行 elf

3. 然后之后执行 elf 的相关业务

执行 "./Test01Sum"

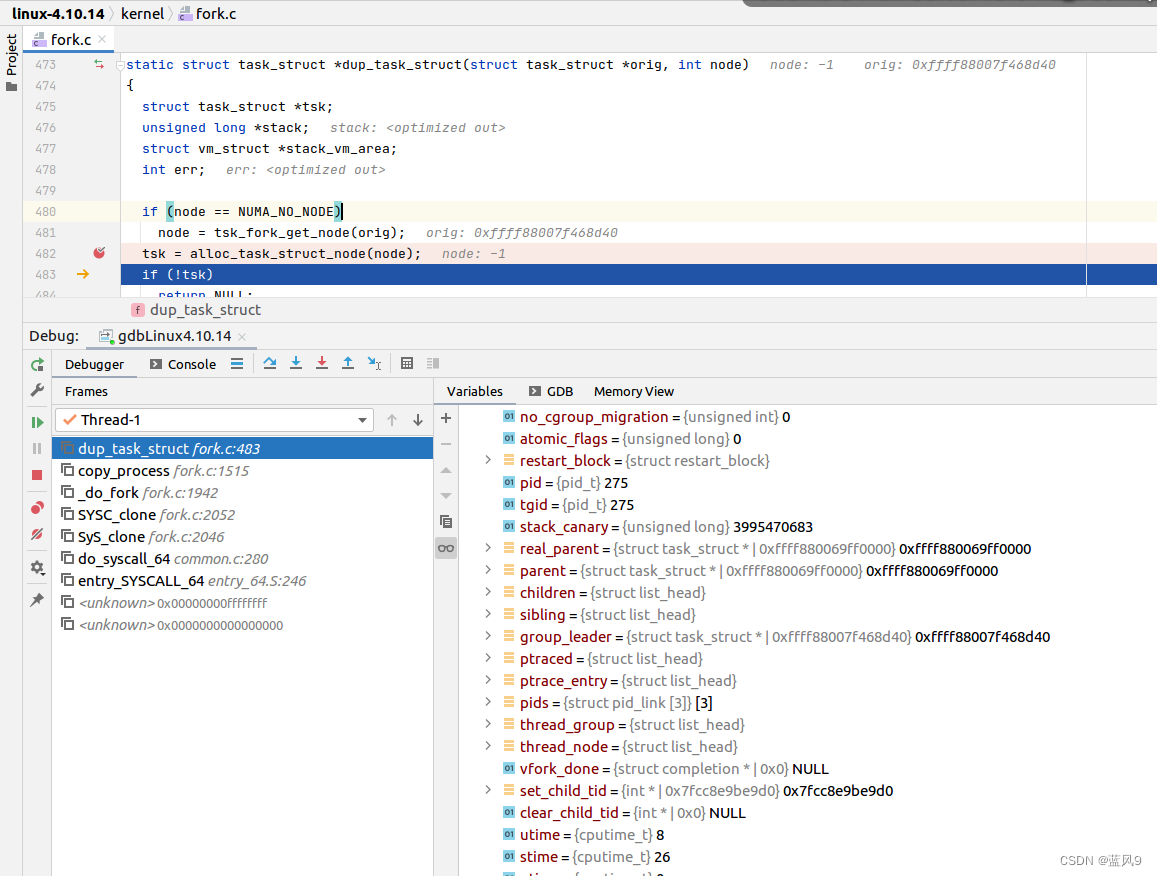

首先是 fork, 可以看到执行 Test01Sum 的进程是 275

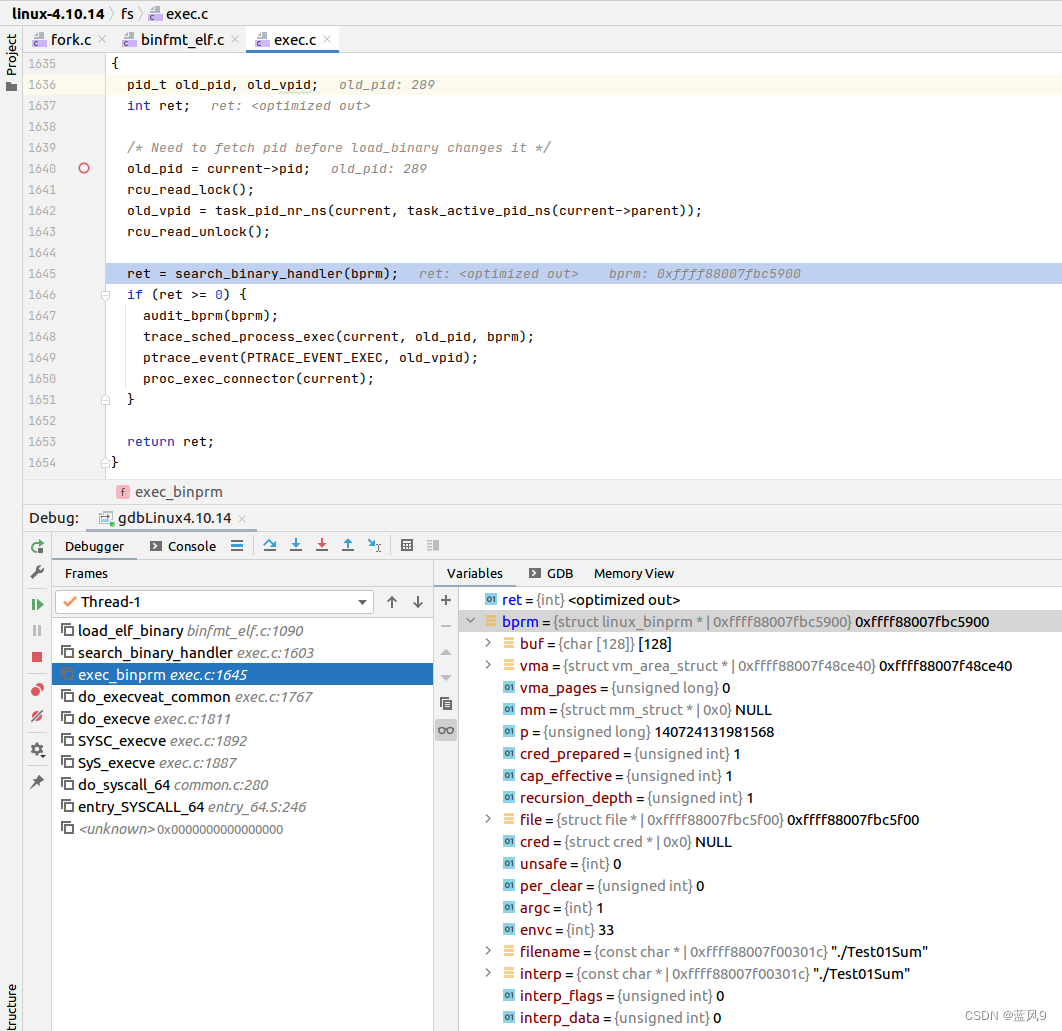

然后是 exec 更新子进程待执行的 elf

这里可以看到待执行文件为 "./Test01Sum"

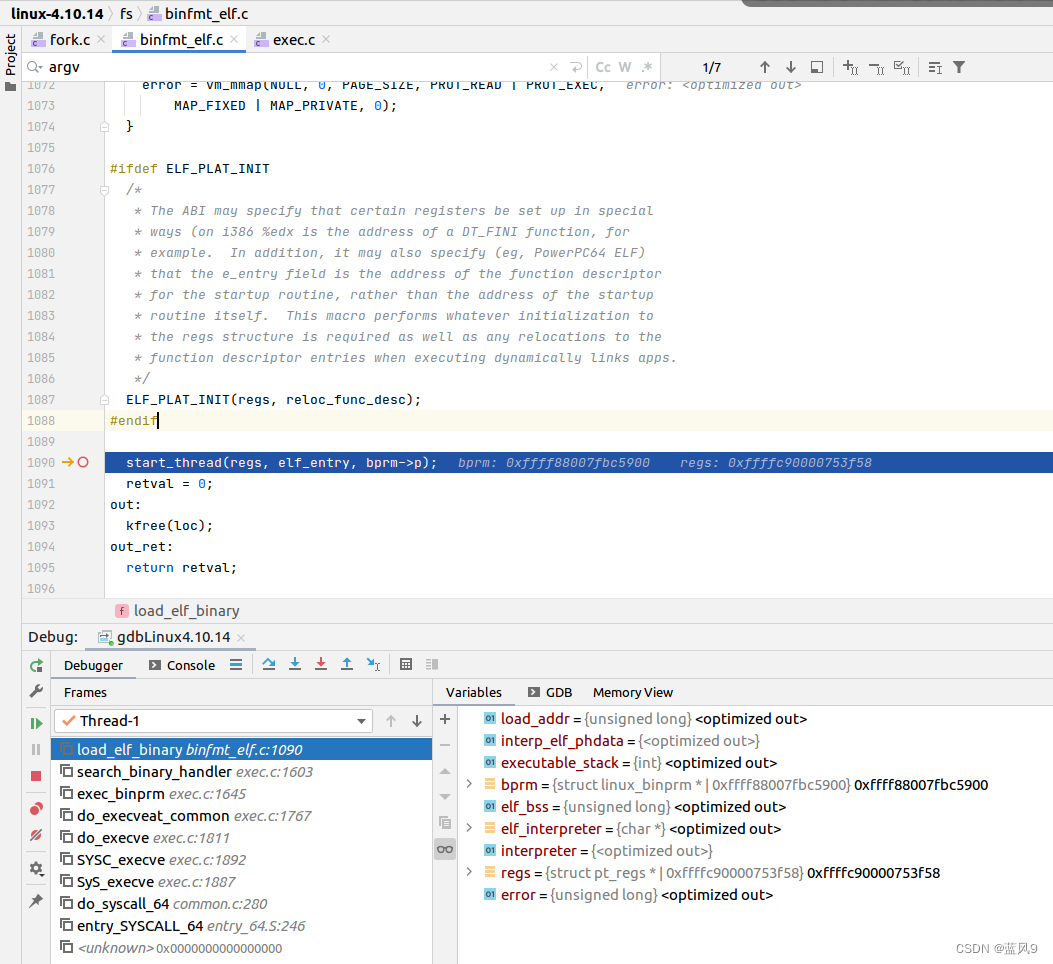

然后核心业务处理是在 binfmt_elf. load_elf_binary

主要包含了读取 elfHeader, programHeaders, 加载 interpreter, 加载 interpreter 的 elfHeader, programHeaders, mmap LOAD 的 segment, 更新 bss, data, code 的相关偏移, 初始化执行程序的栈帧, 更新子进程的入口, 子进程开始处理业务

这里的 elf_entry, 如果是静态链接, 则为 elf 的 entry_point, 否则为 interpreter 的 entry_point
