一、DCGAN

1.1 参数

（1）输入：会被放缩到6464
（2）输出：6464
（3）数据集：

1.2 实现

import glob
import torch
from PIL import Image
from torch import nn
from torch.utils import data
from torchvision import transforms
import torch.nn.functional as F
import matplotlib.pyplot as plt
import numpy as np
from torch.utils.tensorboard import SummaryWriter
import oslog_dir = "./model/dcgan.pth"
images_path = glob.glob('./data/xinggan_face/*.jpg')BATCH_SIZE = 32
dataset = FaceDataset(images_path)
data_loader = data.DataLoader(dataset, batch_size=BATCH_SIZE, shuffle=True)
image_batch = next(iter(data_loader))transform = transforms.Compose([transforms.Resize(64),transforms.ToTensor(),transforms.Normalize(mean=(0.5, 0.5, 0.5), std=(0.5, 0.5, 0.5))
])class FaceDataset(data.Dataset):def __init__(self, images_path):self.images_path = images_pathdef __getitem__(self, index):image_path = self.images_path[index]pil_img = Image.open(image_path)pil_img = transform(pil_img)return pil_imgdef __len__(self):return len(self.images_path)# 定义生成器
class Generator(nn.Module):def __init__(self):super(Generator, self).__init__()self.linear1 = nn.Linear(100, 256*16*16)self.bn1 = nn.BatchNorm1d(256*16*16)self.deconv1 = nn.ConvTranspose2d(256, 128, kernel_size=3, padding=1)  # 输出：128*16*16self.bn2 = nn.BatchNorm2d(128)self.deconv2 = nn.ConvTranspose2d(128, 64, kernel_size=4, stride=2, padding=1)  # 输出：64*32*32self.bn3 = nn.BatchNorm2d(64)self.deconv3 = nn.ConvTranspose2d(64, 3, kernel_size=4, stride=2, padding=1)  # 输出：3*64*64def forward(self, x):x = F.relu(self.linear1(x))x = self.bn1(x)x = x.view(-1, 256, 16, 16)x = F.relu(self.deconv1(x))x = self.bn2(x)x = F.relu(self.deconv2(x))x = self.bn3(x)x = F.tanh(self.deconv3(x))return x# 定义判别器
class Discrimination(nn.Module):def __init__(self):super(Discrimination, self).__init__()self.conv1 = nn.Conv2d(in_channels=3, out_channels=64, kernel_size=3, stride=2)  # 64*31*31self.conv2 = nn.Conv2d(in_channels=64, out_channels=128, kernel_size=3, stride=2)  # 128*15*15self.bn1 = nn.BatchNorm2d(128)self.fc = nn.Linear(128*15*15, 1)def forward(self, x):x = F.dropout(F.leaky_relu(self.conv1(x)), p=0.3)x = F.dropout(F.leaky_relu(self.conv2(x)), p=0.3)x = self.bn1(x)x = x.view(-1, 128*15*15)x = torch.sigmoid(self.fc(x))return x# 定义可视化函数
def generate_and_save_images(model, epoch, test_noise_):predictions = model(test_noise_).permute(0, 2, 3, 1).cpu().numpy()fig = plt.figure(figsize=(20, 160))for i in range(predictions.shape[0]):plt.subplot(1, 8, i+1)plt.imshow((predictions[i]+1)/2)# plt.axis('off')plt.show()# 训练函数
def train(gen, dis, loss_fn, gen_opti, dis_opti, start_epoch):print("开始训练")test_noise = torch.randn(8, 100, device=device)writer = SummaryWriter(r'D:\Project\PythonProject\Ttest\run')writer.add_graph(gen, test_noise)#############################D_loss = []G_loss = []# 开始训练for epoch in range(start_epoch, 500):D_epoch_loss = 0G_epoch_loss = 0batch_count = len(data_loader)   # 返回批次数for step, img, in enumerate(data_loader):img = img.to(device)size = img.shape[0]random_noise = torch.randn(size, 100, device=device)  # 生成随机输入# 固定生成器，训练判别器dis_opti.zero_grad()real_output = dis(img)d_real_loss = loss_fn(real_output, torch.ones_like(real_output, device=device))d_real_loss.backward()generated_img = gen(random_noise)# print(generated_img)fake_output = dis(generated_img.detach())d_fake_loss = loss_fn(fake_output, torch.zeros_like(fake_output, device=device))d_fake_loss.backward()dis_loss = d_real_loss + d_fake_lossdis_opti.step()# 固定判别器，训练生成器gen_opti.zero_grad()fake_output = dis(generated_img)gen_loss = loss_fn(fake_output, torch.ones_like(fake_output, device=device))gen_loss.backward()gen_opti.step()with torch.no_grad():D_epoch_loss += dis_loss.item()G_epoch_loss += gen_loss.item()writer.add_scalar("loss/dis_loss", D_epoch_loss / (epoch+1), epoch+1)writer.add_scalar("loss/gen_loss", G_epoch_loss / (epoch+1), epoch+1)with torch.no_grad():D_epoch_loss /= batch_countG_epoch_loss /= batch_countD_loss.append(D_epoch_loss)G_loss.append(G_epoch_loss)print("Epoch:{}, 判别器损失：{}, 生成器损失：{}.".format(epoch, dis_loss, gen_loss))generate_and_save_images(gen, epoch, test_noise)state = {"gen": gen.state_dict(),"dis": dis.state_dict(),"gen_opti": gen_opti.state_dict(),"dis_opti": dis_opti.state_dict(),"epoch": epoch}torch.save(state, log_dir)plt.plot(range(1, len(D_loss)+1), D_loss, label="D_loss")plt.plot(range(1, len(D_loss)+1), G_loss, label="G_loss")plt.xlabel('epoch')plt.legend()plt.show()if __name__ == '__main__':device = "cuda:0" if torch.cuda.is_available() else "cpu"gen = Generator().to(device)dis = Discrimination().to(device)loss_fn = torch.nn.BCELoss()gen_opti = torch.optim.Adam(gen.parameters(), lr=0.0001)dis_opti = torch.optim.Adam(dis.parameters(), lr=0.00001)start_epoch = 0if os.path.exists(log_dir):checkpoint = torch.load(log_dir)gen.load_state_dict(checkpoint["gen"])dis.load_state_dict(checkpoint["dis"])gen_opti.load_state_dict(checkpoint["gen_opti"])dis_opti.load_state_dict(checkpoint["dis_opti"])start_epoch = checkpoint["epoch"]print("模型加载成功，epoch从{}开始训练".format(start_epoch))train(gen, dis, loss_fn, gen_opti, dis_opti, start_epoch)

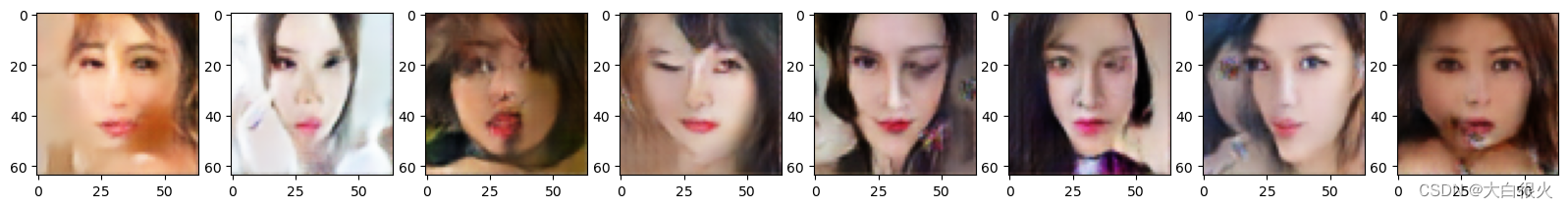

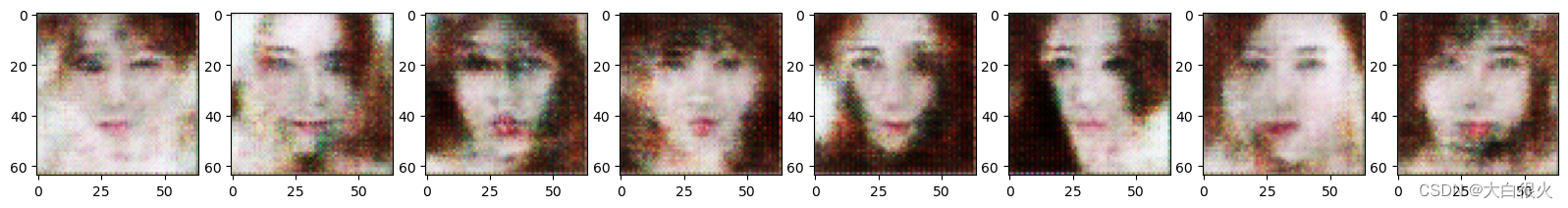

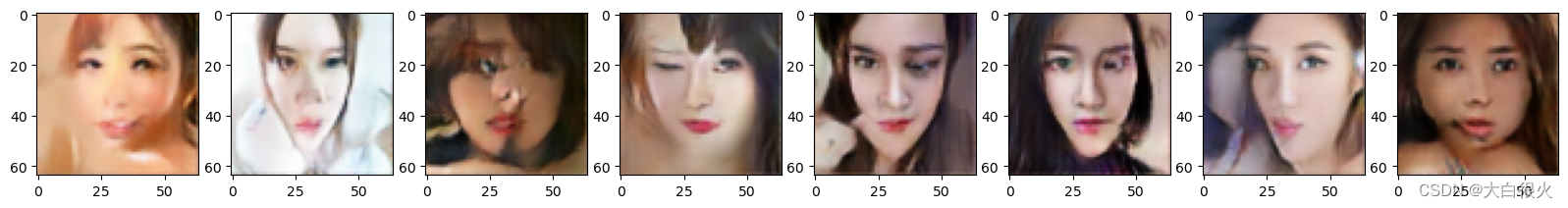

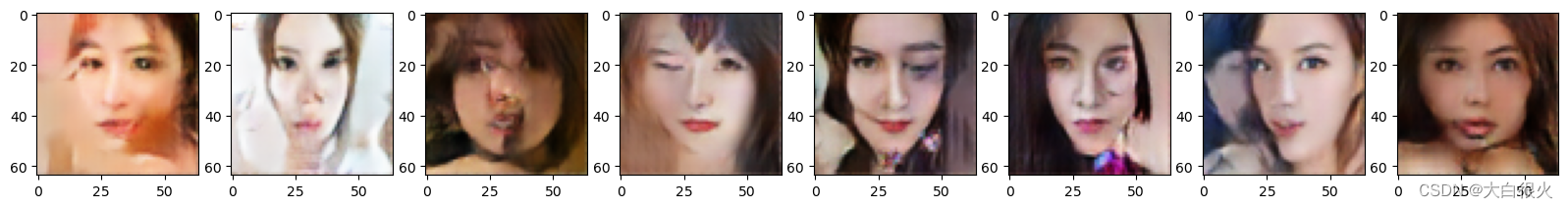

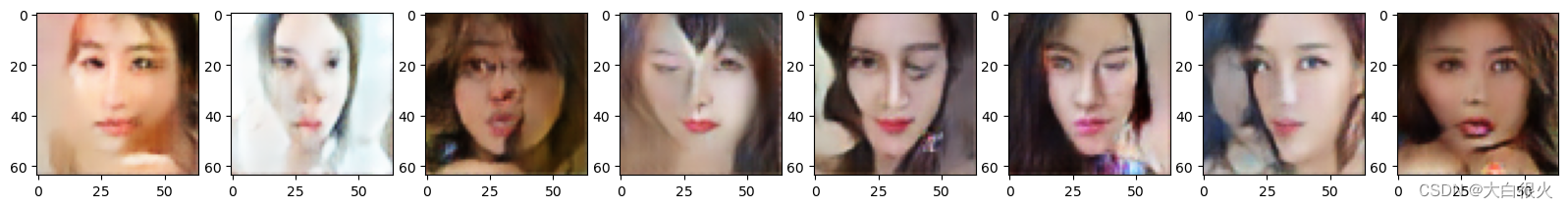

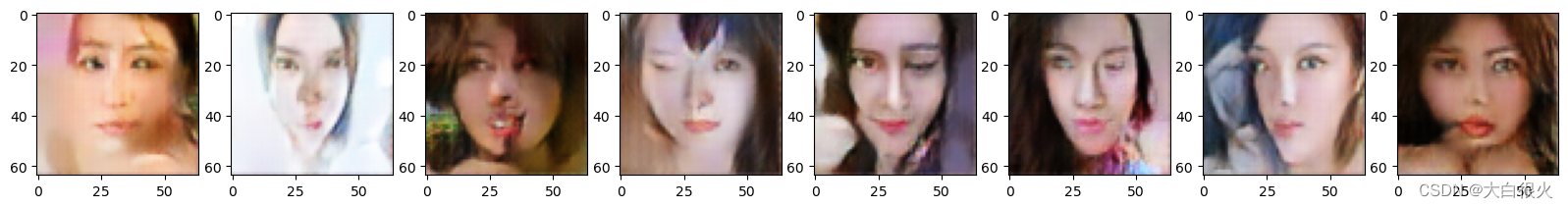

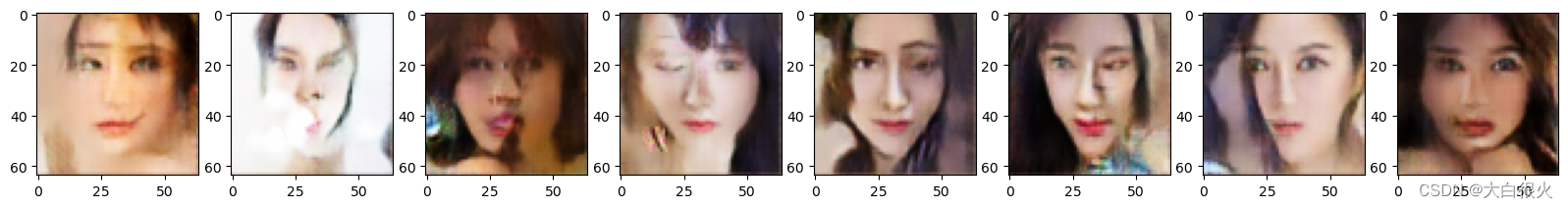

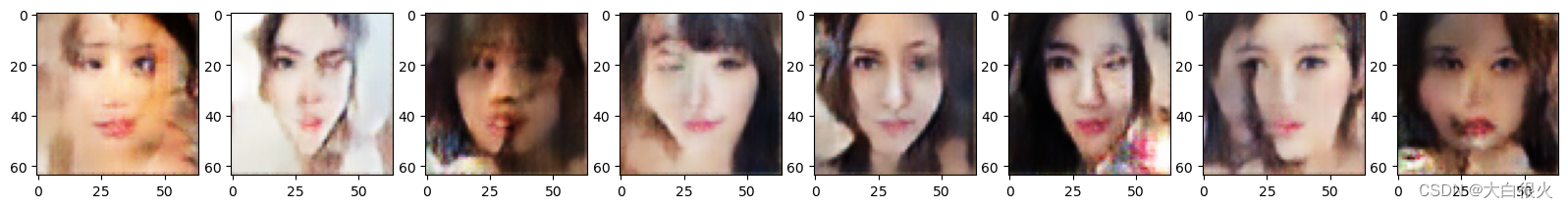

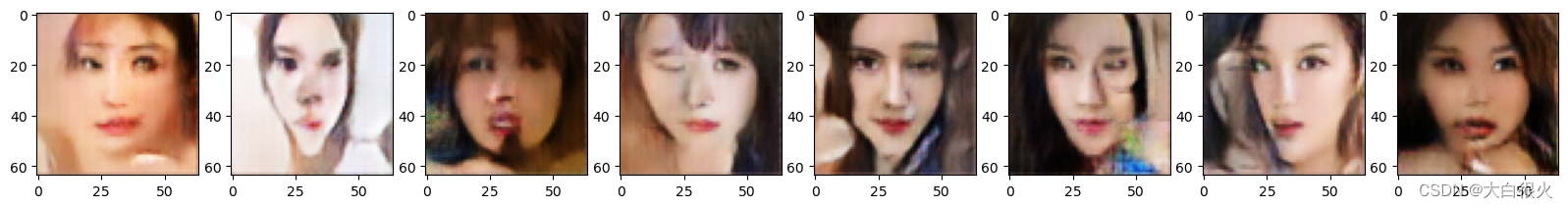

1.3 实验效果

开始训练
Epoch:0, 判别器损失：1.6549043655395508, 生成器损失：0.7864767909049988.

Epoch:20, 判别器损失：1.3690211772918701, 生成器损失：0.6662370562553406.

Epoch:40, 判别器损失：1.413375735282898, 生成器损失：0.7497923970222473.

Epoch:60, 判别器损失：1.2889504432678223, 生成器损失：0.8668195009231567.

Epoch:80, 判别器损失：1.2824485301971436, 生成器损失：0.805076003074646.

Epoch:100, 判别器损失：1.3278448581695557, 生成器损失：0.7859240770339966.

Epoch:120, 判别器损失：1.39650297164917, 生成器损失：0.7616179585456848.

Epoch:140, 判别器损失：1.3387322425842285, 生成器损失：0.811163067817688.

Epoch:160, 判别器损失：1.1281094551086426, 生成器损失：0.7557946443557739.

Epoch:180, 判别器损失：1.369300365447998, 生成器损失：0.5207887887954712.
