Issue summary：

A kubernetes woker node, named k8s-worker2 is in state NotReady. Investigate why this is the case, and perform any appropriate steps to bring the node to a Ready state, ensuring that any changes are made permanent.
一个k8s节点k8s-work2 状态为NotReady，调查它的原因并永久恢复为Ready状态

Useful comment:

  $ ssh k8s-worker2You can assume elevated privileges on the node with the following command:$ sudo -i

1. 创建场景

1.1 当前集群状态

root@k8s-master:~# kubectl get nodes
NAME          STATUS   ROLES           AGE    VERSION
k8s-master    Ready    control-plane   128m   v1.24.1
k8s-worker1   Ready              126m   v1.24.1
k8s-worker2   Ready              126m   v1.24.1
root@k8s-master:~# kubectl get pods -o wide
NAME                                READY   STATUS    RESTARTS   AGE   IP               NODE          NOMINATED NODE   READINESS GATES
nginx-deployment-6595874d85-555wq   1/1     Running   0          14m   192.168.194.90   k8s-worker1
nginx-deployment-6595874d85-76k9v   1/1     Running   0          25m   192.168.194.85   k8s-worker1
nginx-deployment-6595874d85-bw8rx   1/1     Running   0          14m   192.168.194.92   k8s-worker1
nginx-deployment-6595874d85-j8jtw   1/1     Running   0          25m   192.168.126.22   k8s-worker2
nginx-deployment-6595874d85-jqvhh   1/1     Running   0          14m   192.168.126.29   k8s-worker2
nginx-deployment-6595874d85-m4ql9   1/1     Running   0          14m   192.168.126.28   k8s-worker2
nginx-deployment-6595874d85-nm984   1/1     Running   0          14m   192.168.194.91   k8s-worker1
nginx-deployment-6595874d85-vm66r   1/1     Running   0          14m   192.168.126.27   k8s-worker2
nginx-deployment-6595874d85-vszn8   1/1     Running   0          14m   192.168.194.93   k8s-worker1
nginx-deployment-6595874d85-wc8wr   1/1     Running   0          25m   192.168.126.23   k8s-worker2

2. 停掉 k8s-worker2 的kubelet-service

通过 ssh 切换到 k8s-work2

2.1 查看当前 k8s-woker2 的kubelet-service 状态

root@k8s-worker2:~# systemctl status kubelet.service
● kubelet.service - kubelet: The Kubernetes Node AgentLoaded: loaded (/lib/systemd/system/kubelet.service; enabled; vendor preset: enabled)Drop-In: /etc/systemd/system/kubelet.service.d└─10-kubeadm.confActive: active (running) since Mon 2023-03-20 03:46:55 CST; 2h 8min agoDocs: https://kubernetes.io/docs/home/Main PID: 8303 (kubelet)Tasks: 14 (limit: 4219)Memory: 41.1MCPU: 1min 15.726sCGroup: /system.slice/kubelet.service└─8303 /usr/bin/kubelet --bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.conf --kubeconfig=/etc/kubernetes/kubelet.conf --config=/var/lib/kubelet/config.yaml --container-runtime=remote --container-r>Mar 20 05:32:20 k8s-worker2 kubelet[8303]: I0320 05:32:20.655052    8303 scope.go:110] "RemoveContainer" containerID="1571afb042a8db01ad1e25de3ff3cac5a6851b07e4e5edf4a31c96abc31a4420"
Mar 20 05:32:20 k8s-worker2 kubelet[8303]: E0320 05:32:20.660918    8303 remote_runtime.go:604] "ContainerStatus from runtime service failed" err="rpc error: code = NotFound desc = an error occurred when try to find con>
Mar 20 05:32:20 k8s-worker2 kubelet[8303]: I0320 05:32:20.660955    8303 pod_container_deletor.go:52] "DeleteContainer returned error" containerID={Type:containerd ID:1571afb042a8db01ad1e25de3ff3cac5a6851b07e4e5edf4a31c>
Mar 20 05:32:21 k8s-worker2 kubelet[8303]: I0320 05:32:21.849902    8303 kubelet_volumes.go:160] "Cleaned up orphaned pod volumes dir" podUID=807337b4-1c21-4355-8fa6-d2310b0c9a32 path="/var/lib/kubelet/pods/807337b4-1c2>
Mar 20 05:39:00 k8s-worker2 kubelet[8303]: I0320 05:39:00.454363    8303 topology_manager.go:200] "Topology Admit Handler"
Mar 20 05:39:00 k8s-worker2 kubelet[8303]: I0320 05:39:00.467982    8303 reconciler.go:270] "operationExecutor.VerifyControllerAttachedVolume started for volume \"kube-api-access-g4d59\" (UniqueName: \"kubernetes.io/pro>
Mar 20 05:39:00 k8s-worker2 kubelet[8303]: I0320 05:39:00.475057    8303 topology_manager.go:200] "Topology Admit Handler"
Mar 20 05:39:00 k8s-worker2 kubelet[8303]: I0320 05:39:00.491783    8303 topology_manager.go:200] "Topology Admit Handler"
Mar 20 05:39:00 k8s-worker2 kubelet[8303]: I0320 05:39:00.568687    8303 reconciler.go:270] "operationExecutor.VerifyControllerAttachedVolume started for volume \"kube-api-access-2x9bq\" (UniqueName: \"kubernetes.io/pro>
Mar 20 05:39:00 k8s-worker2 kubelet[8303]: I0320 05:39:00.568762    8303 reconciler.go:270] "operationExecutor.VerifyControllerAttachedVolume started for volume \"kube-api-access-n94sr\" (UniqueName: \"kubernetes.io/pro>

2.2 stop kubelet.service

systemctl stop kubelet.service

2.3 查看此时nodes状态

root@k8s-worker2:~# kubectl get nodes
NAME          STATUS     ROLES           AGE    VERSION
k8s-master    Ready      control-plane   134m   v1.24.1
k8s-worker1   Ready                132m   v1.24.1
k8s-worker2   NotReady             132m   v1.24.1

3. 问题调查

3.1 在 k8s-woker2 上查看 该节点详细信息

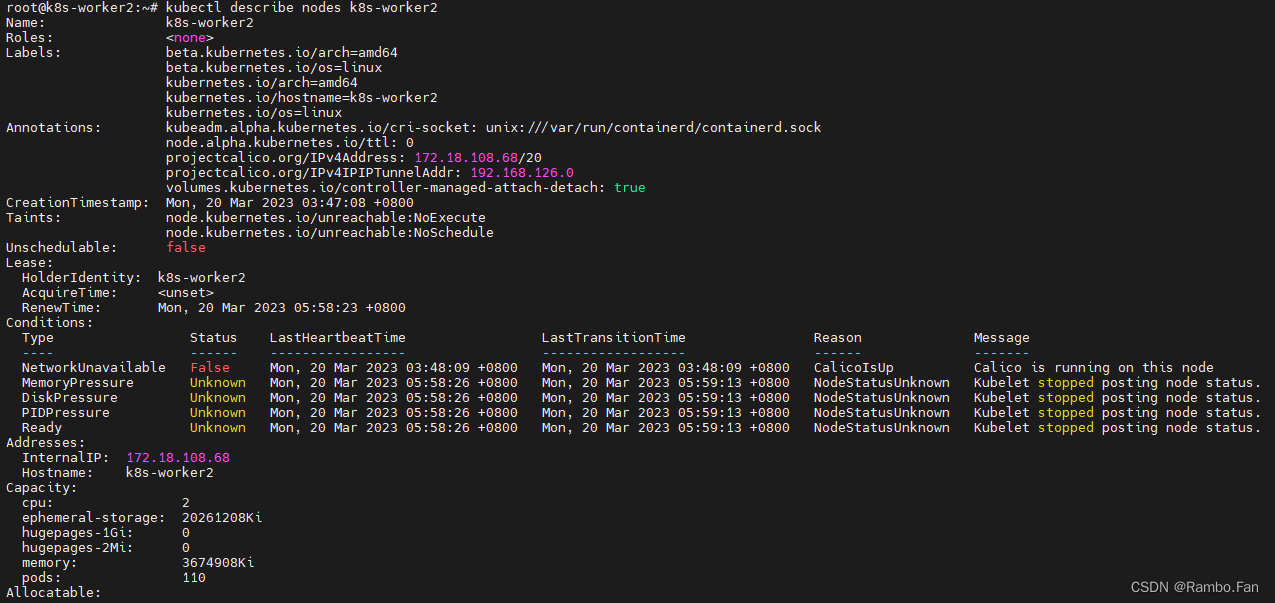

root@k8s-worker2:~# kubectl describe nodes k8s-worker2
Name:               k8s-worker2
Roles:
Labels:             beta.kubernetes.io/arch=amd64beta.kubernetes.io/os=linuxkubernetes.io/arch=amd64kubernetes.io/hostname=k8s-worker2kubernetes.io/os=linux
Annotations:        kubeadm.alpha.kubernetes.io/cri-socket: unix:///var/run/containerd/containerd.socknode.alpha.kubernetes.io/ttl: 0projectcalico.org/IPv4Address: 172.18.108.68/20projectcalico.org/IPv4IPIPTunnelAddr: 192.168.126.0volumes.kubernetes.io/controller-managed-attach-detach: true
CreationTimestamp:  Mon, 20 Mar 2023 03:47:08 +0800
Taints:             node.kubernetes.io/unreachable:NoExecutenode.kubernetes.io/unreachable:NoSchedule
Unschedulable:      false
Lease:HolderIdentity:  k8s-worker2AcquireTime:     RenewTime:       Mon, 20 Mar 2023 05:58:23 +0800
Conditions:Type                 Status    LastHeartbeatTime                 LastTransitionTime                Reason              Message----                 ------    -----------------                 ------------------                ------              -------NetworkUnavailable   False     Mon, 20 Mar 2023 03:48:09 +0800   Mon, 20 Mar 2023 03:48:09 +0800   CalicoIsUp          Calico is running on this nodeMemoryPressure       Unknown   Mon, 20 Mar 2023 05:58:26 +0800   Mon, 20 Mar 2023 05:59:13 +0800   NodeStatusUnknown   Kubelet stopped posting node status.DiskPressure         Unknown   Mon, 20 Mar 2023 05:58:26 +0800   Mon, 20 Mar 2023 05:59:13 +0800   NodeStatusUnknown   Kubelet stopped posting node status.PIDPressure          Unknown   Mon, 20 Mar 2023 05:58:26 +0800   Mon, 20 Mar 2023 05:59:13 +0800   NodeStatusUnknown   Kubelet stopped posting node status.Ready                Unknown   Mon, 20 Mar 2023 05:58:26 +0800   Mon, 20 Mar 2023 05:59:13 +0800   NodeStatusUnknown   Kubelet stopped posting node status.
Addresses:InternalIP:  172.18.108.68Hostname:    k8s-worker2
Capacity:cpu:                2ephemeral-storage:  20261208Kihugepages-1Gi:      0hugepages-2Mi:      0memory:             3674908Kipods:               110
Allocatable:cpu:                2ephemeral-storage:  18672729262hugepages-1Gi:      0hugepages-2Mi:      0memory:             3572508Kipods:               110
System Info:Machine ID:                 96616f9e696f480c970862c129963a34System UUID:                23ededd5-582b-491a-852f-f2caef69680cBoot ID:                    869910d0-a51f-4e7d-8a6b-17fec5740011Kernel Version:             5.15.0-58-genericOS Image:                   Ubuntu 22.04.1 LTSOperating System:           linuxArchitecture:               amd64Container Runtime Version:  containerd://1.6.18Kubelet Version:            v1.24.1Kube-Proxy Version:         v1.24.1
Non-terminated Pods:          (8 in total)Namespace                   Name                                 CPU Requests  CPU Limits  Memory Requests  Memory Limits  Age---------                   ----                                 ------------  ----------  ---------------  -------------  ---default                     nginx-deployment-6595874d85-j8jtw    0 (0%)        0 (0%)      0 (0%)           0 (0%)         33mdefault                     nginx-deployment-6595874d85-jqvhh    0 (0%)        0 (0%)      0 (0%)           0 (0%)         22mdefault                     nginx-deployment-6595874d85-m4ql9    0 (0%)        0 (0%)      0 (0%)           0 (0%)         22mdefault                     nginx-deployment-6595874d85-vm66r    0 (0%)        0 (0%)      0 (0%)           0 (0%)         22mdefault                     nginx-deployment-6595874d85-wc8wr    0 (0%)        0 (0%)      0 (0%)           0 (0%)         33mkube-system                 calico-node-cwbqh                    250m (12%)    0 (0%)      0 (0%)           0 (0%)         134mkube-system                 coredns-74586cf9b6-htqlm             100m (5%)     0 (0%)      70Mi (2%)        170Mi (4%)     121mkube-system                 kube-proxy-dgfgl                     0 (0%)        0 (0%)      0 (0%)           0 (0%)         134m
Allocated resources:(Total limits may be over 100 percent, i.e., overcommitted.)Resource           Requests    Limits--------           --------    ------cpu                350m (17%)  0 (0%)memory             70Mi (2%)   170Mi (4%)ephemeral-storage  0 (0%)      0 (0%)hugepages-1Gi      0 (0%)      0 (0%)hugepages-2Mi      0 (0%)      0 (0%)
Events:Type    Reason        Age    From             Message----    ------        ----   ----             -------Normal  NodeNotReady  2m18s  node-controller  Node k8s-worker2 status is now: NodeNotReady

output:

3.2 问题定位

可以看到Conditions这里Message有很明显的信息说kubelet stopped

3.3 查看k8s-worker2 的kubelet.service 状态

root@k8s-worker2:~# systemctl status kubelet.service
○ kubelet.service - kubelet: The Kubernetes Node AgentLoaded: loaded (/lib/systemd/system/kubelet.service; enabled; vendor preset: enabled)Drop-In: /etc/systemd/system/kubelet.service.d└─10-kubeadm.confActive: inactive (dead) since Mon 2023-03-20 05:58:27 CST; 8min agoDocs: https://kubernetes.io/docs/home/Process: 8303 ExecStart=/usr/bin/kubelet $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_KUBEADM_ARGS $KUBELET_EXTRA_ARGS --container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/contain>Main PID: 8303 (code=exited, status=0/SUCCESS)CPU: 1min 17.733sMar 20 05:39:00 k8s-worker2 kubelet[8303]: I0320 05:39:00.467982    8303 reconciler.go:270] "operationExecutor.VerifyControllerAttachedVolume started for volume \"kube-api-access-g4d59\" (UniqueName: \"kubernetes.io/pro>
Mar 20 05:39:00 k8s-worker2 kubelet[8303]: I0320 05:39:00.475057    8303 topology_manager.go:200] "Topology Admit Handler"
Mar 20 05:39:00 k8s-worker2 kubelet[8303]: I0320 05:39:00.491783    8303 topology_manager.go:200] "Topology Admit Handler"
Mar 20 05:39:00 k8s-worker2 kubelet[8303]: I0320 05:39:00.568687    8303 reconciler.go:270] "operationExecutor.VerifyControllerAttachedVolume started for volume \"kube-api-access-2x9bq\" (UniqueName: \"kubernetes.io/pro>
Mar 20 05:39:00 k8s-worker2 kubelet[8303]: I0320 05:39:00.568762    8303 reconciler.go:270] "operationExecutor.VerifyControllerAttachedVolume started for volume \"kube-api-access-n94sr\" (UniqueName: \"kubernetes.io/pro>
Mar 20 05:58:27 k8s-worker2 systemd[1]: Stopping kubelet: The Kubernetes Node Agent...
Mar 20 05:58:27 k8s-worker2 kubelet[8303]: I0320 05:58:27.504326    8303 dynamic_cafile_content.go:171] "Shutting down controller" name="client-ca-bundle::/etc/kubernetes/pki/ca.crt"
Mar 20 05:58:27 k8s-worker2 systemd[1]: kubelet.service: Deactivated successfully.
Mar 20 05:58:27 k8s-worker2 systemd[1]: Stopped kubelet: The Kubernetes Node Agent.
Mar 20 05:58:27 k8s-worker2 systemd[1]: kubelet.service: Consumed 1min 17.733s CPU time.

ouput:

从这里Active:inactive(dead) 可以很清楚的知道服务挂掉了，需要将服务起一下。

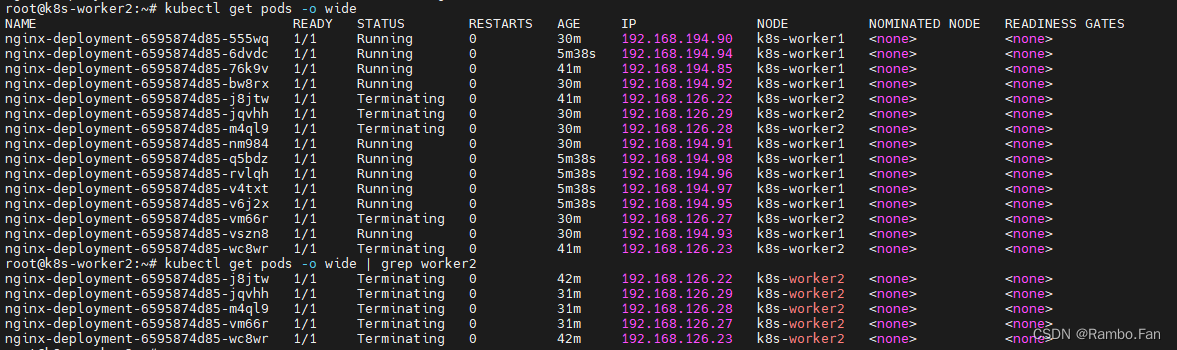

当然这里可以查看pods 的信息

root@k8s-worker2:~# kubectl get pods -o wide
NAME                                READY   STATUS        RESTARTS   AGE     IP               NODE          NOMINATED NODE   READINESS GATES
nginx-deployment-6595874d85-555wq   1/1     Running       0          30m     192.168.194.90   k8s-worker1
nginx-deployment-6595874d85-6dvdc   1/1     Running       0          5m38s   192.168.194.94   k8s-worker1
nginx-deployment-6595874d85-76k9v   1/1     Running       0          41m     192.168.194.85   k8s-worker1
nginx-deployment-6595874d85-bw8rx   1/1     Running       0          30m     192.168.194.92   k8s-worker1
nginx-deployment-6595874d85-j8jtw   1/1     Terminating   0          41m     192.168.126.22   k8s-worker2
nginx-deployment-6595874d85-jqvhh   1/1     Terminating   0          30m     192.168.126.29   k8s-worker2
nginx-deployment-6595874d85-m4ql9   1/1     Terminating   0          30m     192.168.126.28   k8s-worker2
nginx-deployment-6595874d85-nm984   1/1     Running       0          30m     192.168.194.91   k8s-worker1
nginx-deployment-6595874d85-q5bdz   1/1     Running       0          5m38s   192.168.194.98   k8s-worker1
nginx-deployment-6595874d85-rvlqh   1/1     Running       0          5m38s   192.168.194.96   k8s-worker1
nginx-deployment-6595874d85-v4txt   1/1     Running       0          5m38s   192.168.194.97   k8s-worker1
nginx-deployment-6595874d85-v6j2x   1/1     Running       0          5m38s   192.168.194.95   k8s-worker1
nginx-deployment-6595874d85-vm66r   1/1     Terminating   0          30m     192.168.126.27   k8s-worker2
nginx-deployment-6595874d85-vszn8   1/1     Running       0          30m     192.168.194.93   k8s-worker1
nginx-deployment-6595874d85-wc8wr   1/1     Terminating   0          41m     192.168.126.23   k8s-worker2
root@k8s-worker2:~# kubectl get pods -o wide | grep worker2
nginx-deployment-6595874d85-j8jtw   1/1     Terminating   0          42m     192.168.126.22   k8s-worker2
nginx-deployment-6595874d85-jqvhh   1/1     Terminating   0          31m     192.168.126.29   k8s-worker2
nginx-deployment-6595874d85-m4ql9   1/1     Terminating   0          31m     192.168.126.28   k8s-worker2
nginx-deployment-6595874d85-vm66r   1/1     Terminating   0          31m     192.168.126.27   k8s-worker2
nginx-deployment-6595874d85-wc8wr   1/1     Terminating   0          42m     192.168.126.23   k8s-worker2

output:

可以看到k8s-worker2上运行的pods都处于 Terminating 状态。
既然知道了是kubelet 服务挂掉了，我们将他起一下就可以。

4. enable kubelet.service

systemctl enable --now kubelet.service

可以查看 enable 和 --now的参数解释

root@k8s-worker2:~# systemctl enable --help
systemctl [OPTIONS...] COMMAND ...Query or send control commands to the system manager.
...status [PATTERN...|PID...]          Show runtime status of one or more units
...start UNIT...                       Start (activate) one or more unitsstop UNIT...                        Stop (deactivate) one or more unitsreload UNIT...                      Reload one or more unitsrestart UNIT...                     Start or restart one or more units
...enable [UNIT...|PATH...]            Enable one or more unit filesdisable UNIT...                     Disable one or more unit files
...
Options:-h --help              Show this help--version           Show package version--system            Connect to system manager--user              Connect to user service manager
...-s --signal=SIGNAL     Which signal to send--what=RESOURCES    Which types of resources to remove--now               Start or stop unit after enabling or disabling it--dry-run           Only print what would be doneCurrently supported by verbs: halt, poweroff, reboot,
...

5. 检查 nodes 状态

root@k8s-worker2:~# kubectl get nodes  -o wide
NAME          STATUS   ROLES           AGE    VERSION   INTERNAL-IP     EXTERNAL-IP   OS-IMAGE             KERNEL-VERSION      CONTAINER-RUNTIME
k8s-master    Ready    control-plane   157m   v1.24.1   172.18.108.66           Ubuntu 22.04.1 LTS   5.15.0-58-generic   containerd://1.6.18
k8s-worker1   Ready              155m   v1.24.1   172.18.108.67           Ubuntu 22.04.1 LTS   5.15.0-58-generic   containerd://1.6.18
k8s-worker2   Ready              155m   v1.24.1   172.18.108.68           Ubuntu 22.04.1 LTS   5.15.0-58-generic   containerd://1.6.18
root@k8s-worker2:~# kubectl get pods -o wide
NAME                                READY   STATUS    RESTARTS   AGE   IP               NODE          NOMINATED NODE   READINESS GATES
nginx-deployment-6595874d85-555wq   1/1     Running   0          43m   192.168.194.90   k8s-worker1
nginx-deployment-6595874d85-6dvdc   1/1     Running   0          18m   192.168.194.94   k8s-worker1
nginx-deployment-6595874d85-76k9v   1/1     Running   0          54m   192.168.194.85   k8s-worker1
nginx-deployment-6595874d85-bw8rx   1/1     Running   0          43m   192.168.194.92   k8s-worker1
nginx-deployment-6595874d85-nm984   1/1     Running   0          43m   192.168.194.91   k8s-worker1
nginx-deployment-6595874d85-q5bdz   1/1     Running   0          18m   192.168.194.98   k8s-worker1
nginx-deployment-6595874d85-rvlqh   1/1     Running   0          18m   192.168.194.96   k8s-worker1
nginx-deployment-6595874d85-v4txt   1/1     Running   0          18m   192.168.194.97   k8s-worker1
nginx-deployment-6595874d85-v6j2x   1/1     Running   0          18m   192.168.194.95   k8s-worker1
nginx-deployment-6595874d85-vszn8   1/1     Running   0          43m   192.168.194.93   k8s-worker1

这里可以看到节点是Ready状态 ， 可以重启下看看是否支持重启自动恢复为Ready状态

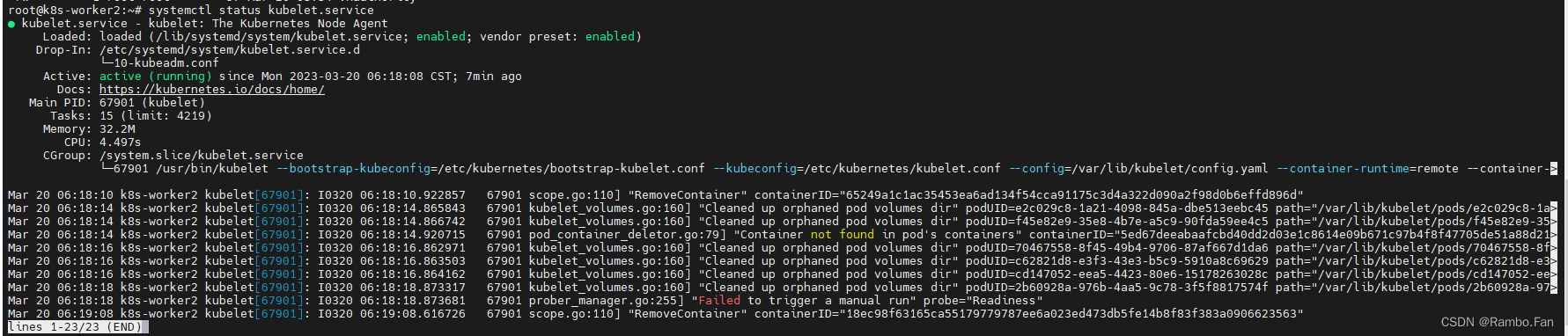

查看kubelet.service 信息

可以看到服务处于active状态

5. 结论

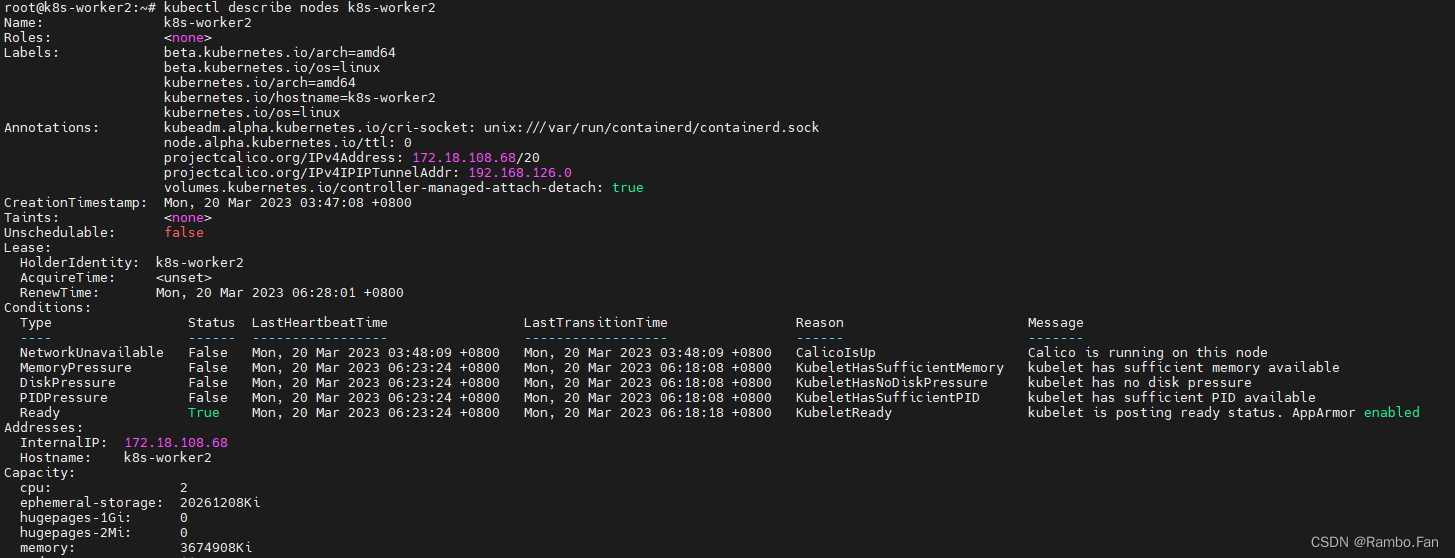

当某个节点有问题时需要上去看看节点详细信息

kubectl describe nodes k8s-worker2
